ComNet CNGE2MCPOEBT:

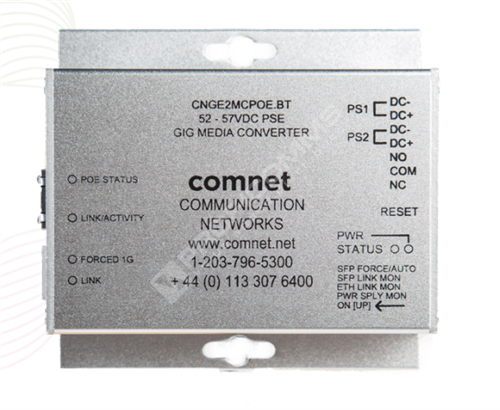

Industrial 90W 802.3bt Dual-Port Media Converter

ComNet CNGE2MCPOEBT:
Novinka
ComNet CNGE2MCPOEBT:
ComNet CNGE2MCPOEBT:
CNGE2MCPOEBTKód:

ComNet

Výrobce:
60 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:



Key Features:

✅ Redundant power supply input with 47V UVLO (under-voltage lockout) protection

✅ 10/100/1000BASE-T Ethernet connectivity to the network provided on an RJ45 Connector
◦ Supports Auto-Negotiation for 10, 100 or 1000 Mbps through the RJ45 Interface
◦ IEEE 802.3bt Class 1-8 (Type 4) 90W PoE sourcing capability
◦ Backwards compatible with IEEE 802.3af and 802.3at

✅ 1000 Mbps Fiber Optic connectivity provided on SFP connector

✅ Local summary alarm (Form C relay) & fail-safe pass-through interface
◦ Power, SFP link, and Ethernet link fault monitoring is customer selectable through DIP switch configuration

✅ Distances up to 120 km with optional SFPs

✅ Designed to meet full compliance with the environmental requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment

✅ Uses interchangeable SFP for fiber type, distance and connector (Ordered separately)

✅ Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events

✅ No in-field optical adjustments required

✅ LED Indicators



Parametry
Vlákno dle SFPOptické vlákno
Konektor dle SFPOptický konektor
-40°C až +75°CProvozní teploty
DCNapájení
PoH (90W)PoE/port
Do 19" rozvaděče, Na DIN lištu, Na zeďMontáž
1 Gbps metalika, 10 Mbps metalika, 100 Mbps metalikaHlavní porty (rychlost)
