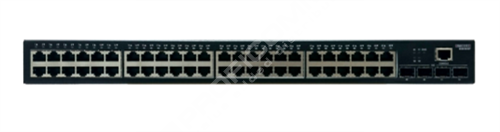

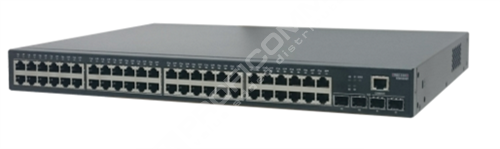

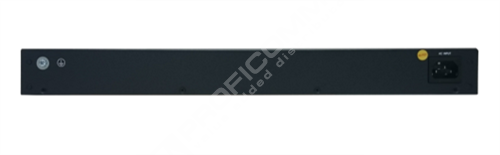

Edge-Core ECS4120-52T: Gigabit Ethernet 52 port switch

GE L2+ 48 x RJ45 GE Base-T + 4 x 10G SFP+, 1 RJ-45 console port

Edge-Core ECS4120-52T: Gigabit Ethernet 52 port switch
Edge-Core ECS4120-52T: Gigabit Ethernet 52 port switch
Edge-Core ECS4120-52T: Gigabit Ethernet 52 port switch
ECS4120-52TKód:

Edge-Core

Výrobce:
60 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:

Optický L2 switch s managementem, 48x GE,4x 10G SFP+, AC napájení, statický routing, výkon 176Gbps

Specifikace:

  • 48x RJ-45 10/100/1000 Ports
  • 4x SFP+ 10 Gigabit Uplink Ports
  • 1x RJ-45 Console Port
  • Rozměry: 279 x 440 x 44 mm
  • Operační teplota: 0°C - 50°C
  • Operační vlhkost: 10% - 90%



Výkon:

  • Switching Capacity: 176 Gpbs
  • Forwarding Rate: 130 Mpps
  • Flash Memory: 256 MB
  • DRAM: 512 MB
  • MAC Address Table Size: 16K
  • Jumbo Frames: 9KB



Vlastnosti



L2 Features

  • Tri-speed (10/100/1000BASE-T) copper interfaces
  • Auto-negotiation for port speed and duplex mode
  • Auto MDI/MDI-X
  • Dual-speed (100Mbps and 1Gbps) SFP fiber interfaces for ECS4120-28F
  • Dual-speed (1G and 10G) fiber interfaces SFP+ ports support:
    • IEEE 802.3ae changeable (10GBASE-SR/LR/ER),
    • IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers, and 10G DAC/AOC
  • Digital Diagnostic Monitoring (DDM) on 10G SFP+ port only
  • Flow Control:
    • IEEE 802.3x for full duplex mode
    • Back-Pressure for half duplex mode
  • Jumbo frames: 9KB
  • Broadcast/Multicast/ Unknown Unicast Storm Control
  • Spanning Tree Protocol:
    • IEEE 802.1D Spanning Tree Protocol (STP)
    • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
    • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), 64 instances
    • BPDU Guard
    • BPDU filtering
    • Root Guard
    • BPDU transparent
    • Loopback detection
  • Non-Spanning Tree Loopback detection
  • ITU-T G.8032 Ethernet Ring Protection*
    • Sub 50 msec convergence*
    • Revertive operation mode*
    • Multiple-ring network*
  • VLANs:
    • Supports 4K VLAN
    • Port-based VLAN
    • IEEE 802.1Q VLAN
    • GVRP
    • VLAN Trunking
    • IEEE 802.1v Protocol-based VLAN
    • IP Subnet-based VLAN
    • MAC-based VLAN
    • Traffic Segmentation
  • L2 Virtual Private VLAN
    • Q-in-Q
    • VLAN Translation
    • L2 Protocol tunneling (xSTP, CDP, VTP & PVST+)*
    • CDP/PVST+ Filtering*
  • Link Aggregation:
    • Static Trunk
    • IEEE 802.3ad Link Aggregation Control Protocol
    • Trunk groups: 26, up to 8 GE/ 4 10G ports per group
    • Load Balancing: SA+DA, SA, DA, SIP+DIP, SIP, DIP
  • IGMP Snooping:
    • IGMP v1/v2/v3 snooping
    • IGMP Proxy reporting
    • IGMP Filtering
    • IGMP Throttling
    • IGMP Immediate Leave
    • IGMP Querier
    • IGMP Authentication*
  • MVR (Multicast VLAN Registration)
    • Supports 5 multicast VLANs
    • Port mirroring
    • Remote port mirror (RSPAN)



QoS Features

  • Priority Queues: 8 hardware queues per port
  • Traffic classification:
    • IEEE 802.1p CoS
    • IP Precedence
    • DSCP
    • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/ VLAN ID)
    • IP Standard access control list (Source IP)
    • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
  • Traffic Scheduling
    • Strict Priority
    • Weighted Round Robin
    • Strict + WRR
  • Single/ Two rate Three color marker
  • Ingress policy map
  • Egress policy map
  • Rate Limiting (Ingress and Egress, per port base)
    • GE: Resolution 64Kbps ~ 1,000Mbps
    • 10G: Resolution 64Kbps ~ 10,000Mbps
  • Auto Traffic Control



Security

  • Port security
  • IEEE 802.1X port based and MAC based authentication
  • Dynamic VLAN Assignment, Auto QoS
  • MAC authentication
  • Web authentication
  • Voice VLAN
  • Guest VLAN
  • L2/L3/L4 Access Control List
    • MAC Access control list (Source/Destination MAC, Ether type, Priority ID/VLAN ID )
    • IP standard access control list (Source IP)
    • IP extended access control list (Source/Destination IP, Protocol, TCP/UDP port number)
  • IPv6 ACL
  • DHCP Snooping
  • DHCP Option 82
  • DHCP Option 82 Relay*
  • IP Source Guard
  • PPPoE IA
  • Dynamic ARP Inspection
  • Denial of Service
  • Login Security
  • RADIUS authentication
  • RADIUS accounting
  • RADIUS authorization
  • TACACS + authentication
  • TACACS + accounting
  • TACACS + authorization
  • Management Interface Access Filtering (SNMP, WEB, Telnet)
  • SSH (v1.5/v2.0) for secure Telnet
  • SSL for HTTPS
  • SNMPv3



Green Ethernet

  • IEEE 802.3az Energy-Efficient Ethernet (EEE)



IPv6 Features

  • IPv4/IPv6 dual protocol stack
  • IPv6 Address Types Stack: Unicast
  • IPv6 Neighbor Discovery
    • Duplicate address
    • Address resolution
    • Unreachable neighbor detection
  • Stateless auto-configuration
  • Manual configuration
  • Remote IPv6 ping
  • IPv6 Telnet support
  • IPv6 DNS Resolver
  • HTTP over IPv6
  • SNMP over IPv6
  • SSH over IPv6
  • IPv6 Syslog support
  • IPv6 SNTP support
  • IPv6 TFTP support
  • RA Guard
  • IPv6 ND Snooping
  • MLD Snooping v1/v2
  • IPv6 source guard
  • DHCPv6 snooping
  • DHCPv6 option 37*
  • MVR6*



Management

  • Switch Management:
    • CLI via console port or Telnet
    • WEB management
    • SNMP v1, v2c, v3
  • Firmware & Configuration:
    • Firmware upgrade via TFTP/HTTP/FTP server
    • Multiple configuration files
    • Configuration file upload/download via TFTP/HTTP/FTP server
  • RMON (groups 1, 2, 3 and 9)
  • BOOTP, DHCP client for IP address assignment
  • DHCP dynamic provision option 66,67*
  • SNTP
  • Event/Error Log
  • Syslog
  • SMTP
  • Supports LLDP (802.1ab)
  • IP clustering
  • sFlow v4, v5
  • (Optional) ECView Pro, a powerful network management software that maximizes the managed capabilities of Edgecore devices with:
    • Topology management
    • Performance management
    • Configuration management
    • Event management
    • SNMP management
  • Cable diagnostics



Routing

  • IPv4 Static Route
  • IPv6 Static Route



OAM

  • IEEE 802.3ah Link*
  • IEEE 802.1ag Connectivity Fault Management*
    • Connectivity check*
    • Loopback*
    • Linktrace*
  • ITU-T Y.1731 Performance and Throughput Management*
    • Frame Delay*
    • Frame Delay variation*

Safety

  • UL (CSA 22.2. NO 60950-1 & UL60950-1)
  • CB (IEC60950-1)



Electromagnetic Compatibility

  • CE Mark
  • FCC Class A
  • CISPR Class A
  • BSMI



Environmental Specifications

  • Temperature: 0ºC to 50ºC (standard operating) -40ºC to 70ºC (non-operating)
  • Humidity: 10% to 90% (non-condensing)



Power Supply

  • Power input:
    • 100 to 240 VAC, 50/60 Hz
    • AC/DC: 90VAC~300VAC, 50/60 Hz
    • DC: 36Vdc~72Vdc (ECS4120-28F only)
Parametry
0°C až +40°CProvozní teploty
Plný management, Webový managementManagement
Broadcom Helix 4 (128Gbps)Typ chipsetu
110-240V ACNapájení
Do 19" rozvaděčeMontáž
1 Gbps optika, 10 Gbps optikaUplink porty (rychlost)
10 Mbps metalika, 100 Mbps metalika, 1 Gbps metalikaHlavní porty (rychlost)
48 a vícePočet portů (celkem)
L2Pracovní vrstva
