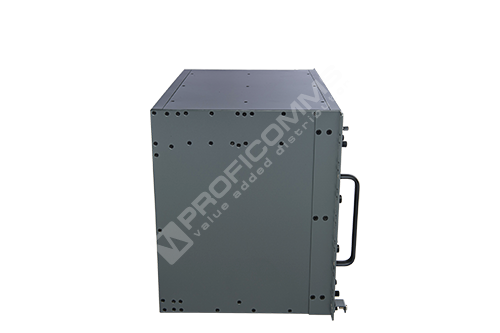

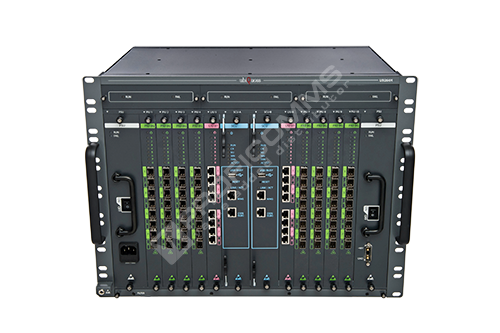

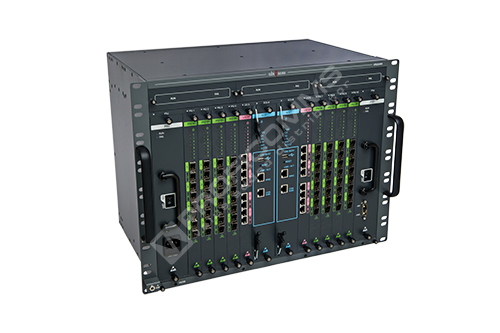

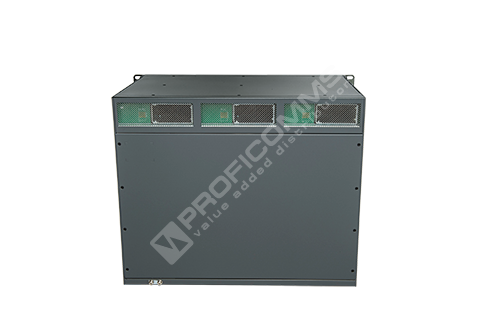

ubiQuoss U9264H: GPON OLT 19" šasi 8U

OLT 19" šasi 8U, 2x managament karta, 8x GPON slot pro GPON karty PIU-8G, 2x Uplink slot, 3x ventilátor, 2x AC napájecí zdroj

ubiQuoss U9264H je vysokokapacitní a multifunkční GPON FTTH optická centrální jednotka založená na platformě 14 slotového chassis osazeného L3 switchi. Jedná se o cenově příznivé řešení optimalizované pro poskytovatele služeb TPS v rámci GPON sítí.

Jednotka má celkem 14 slotů, které mohou být osazeny 2 přepínacími a kontrolními moduly (SCU), 2 síťovými zdroji (PSU), 2 Line Interface jednotkami (LIU) a 8 PON jednotkami (PIU). LIU sloty mohou být osazeny 8-portovými 1G kartami, 2-portovými 10G kartami nebo 4-portovými 10G kartami. PIU sloty mohou být osazeny 8-portovými 2.5G GPON kartami. Sloty pro SCU a PSU umožňují plnou redundanci a zajišťují tak maximální dostupnost a spolehlivost systému. U9264H numožňuje L2 přepínání, L3 routing, funkce QoS, OAM a podporuje IPv6.


GENERAL FEAUTERS

• Maximum split ratio 1:128

• System Architecture

- Medium sized Chassis : 14 slots, 8RU, 19 inch mounting

- 3 FAN Module

- AC / DC Power Module(Redundancy)

• Slot configuration

- Total 14 slots: 2 PSU slots / 10 data slots / 2 Switch & CONTROL slot


• PON interface

- Max. 8 slots: up to 64 PONs

- All Cards and Modules Hot-swapping

• Network interface

- Max. 2 slots: 8-port 1GE / card or 2/4-port 10GE / card

•  Subscriber Capacity

- GPON: 64 GPON Max. 4096 subscribers(1:64 split)


• Switching capacity: 960Gbps/310Mpps


• Switching Fabric: 800Gbps(80G per slot)

•  Fully Redundant System

- Fabric and Control card

- Power Module (AC/DC)

• Support Various SFP/XFP transceiver

• Management :1 port 100Base-Tx & RS-232

• Module based High Capacity L3 switching GPON Common Platform

- 2 slots Power Supply Unit (PSU)

- 8 slots PON Interface Unit (PIU)

- 2 slots Line Interface Unit (LIU)

- 2 slots Switch & Control Unit (SCU)

• Various Line Interface Unit (LIU)

- 2/4 port 10GE module (Up to 8 X 10GE ports, 2 slots)

- 8-port 1G module (Up to 16 X 1GE ports, 2 slots)

• PON Interface Unit(PIU)

- 8-port GPON module (Up to 64 GPON ports, 8 slots): Max. 4096 TPS Subscriber per chassis

(1:64 split)

• Dimension (WxDxH): main body: 437mm x 354,4mm x 295mm

• Operating Temperature: 0~50°C


PON FEATURERS

• Full ITU-T G.984.x GPON OLT functionality.
• 4K port-ID and 1K alloc-ID
• Support ITU-T G.984.4 ONT OMCI
• Multiple T-CONTs per ONU (ONT)
• Wire speed processing
• On-chip embedded reassembly buffer per GPON channel
• 2.5 Gbps downstream rate on each PON channel
• 1.25 Gbps upstream rate on each PON channel
• Supports up to 512 Alloc-IDs per GPON channel
• Internal GPON SERDES and Burst CDR
• 128-bit Advanced Encryption Standard (AES) encryption engine for PON securityand privacy with up to 128 unique keys.
• Flexible optical transceiver interface for multiple vendor support.
• ITU-T G.984 compliant Forward Error Correction (FEC) encoding and decoding for an improved link budget.
• Hardware-based configurable Dynamic Bandwidth Allocation (DBA)
• IEEE 802.1D bridging: 8K MAC Address learning and aging on local interface IEEE 802.1p with four priority queues
• IEEE 802.1Q VLAN mapping



L2 FEATURES

• TR-156 Compliant
• Max 32K Mac Address Table
• Max 4K VLANs, 802.1Q Support
• Private VLAN
• 802.3ad Link Aggregation
• Load-balancing based on source and destination MAC/IP
• 802.1d Spanning Tree Protocol(STP)
• 802.1w Rapid STP(RSTP)
• 802.1s Multiple STP(MSTP)
• Rapid Per VLAN Spanning Tree Plus(RPVST+)
• IGMP v1/v2/v3, snooping
• Max 4K Group Support
• Static Mac Address
• Port Mirroring

L3 FEATURES

• Static Routing
• RIPv2(IPv4)
• OSPFv2(IPv4)
• BGP4(IPv4)
• VRRPv2(IPv4)
• PBR(Policy Based Routing)
• ECMP Max 8 Routes
• Max 12K Routing Entries
• PIM-SM
• PIM-SSM
• IGMP v2/v3
• IGMP Proxy
• Max 1K Group Support
• PIM-ECMP Support
• IGMP Join Filter/Count Limit
• DHCP Server/Relay
• Blocks illegal IP users
• DHCP Snooping
• DAI(Dynamic ARP Inspection)


QoS FEATURES

• Layer 2: Source/Destination MAC Address, VLAN ID, 802.1p Field
• Layer 3: Source/Destination IP Address, DSCP
• Layer 4: Source/Destination TCP/UDP Port
• Marking/Remarking: DSCP, 802.1p
• Packet Drop
• Mirroring/Redirect to Port
• Metering, Rate Limiting with 64Kbps unit
• 8 queues per port
• SPQ, DWRR, Hybrid (SPQ+DWRR)
• Egress rate shaping per port/queue with 64Kbps unit


SECURITY FEATURES

• Netbios, NBT filtering
• DHCP filtering
• Packet filtering with ACLs
• Illegal Source MAC address block
• ALL 0’s, 1’s, System Mac, Default G/W Mac
• Illegal Source IP address block
• Broadcast, DLF, Multicast packet rate control
• Source MAC based excessive traffic Block
• Static Mac address
• Mac filtering
• Max Mac Number limit
• Port based Self Loop Detect

SYSTEM SECURITY FEATURES

• RADIUS,
• TACACS+
• Telnet, SNMP with ACL
• CPU Packet Filtering with ACL
• CPU overload Packet traffic sender block
• TCP sync attack protection with sync cookies
• CPU packet rate-limit
• Management packet priority control
• Gratuitous ARP

MANAGEMENT FEATURES

• Telnet, SSH, SNMP v1/v2/v3
• GUI Based Management through EMS
• Remote OS Upgrade using TFTP, FTP
• Dual Flash Image
• Remote Configuration Data Download
• NTP
• Packet monitoring with TCPDUMP
• RMON, Syslog
• Type based Port, CPU Packet statistics
