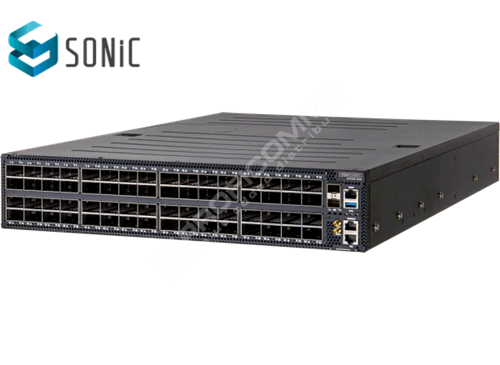

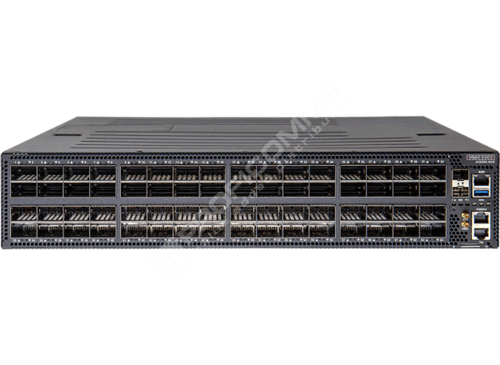

Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch

AIS800-64O, 64 x 800G OSFP800 ports, Broadcom Tomahawk 5 51.2Tbps ASIC, Quad-core Intel Xeon® D1713NTE CPU, dual hot-swappable 3000W AC PSUs and 4 Fan Modules with Front-to-Rear airflow, rack mount kit (Front and back), 3 years Hardware Warranty

Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch
Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch
Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch
Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch
Edge-Core AIS800-64O-AF: 800G Cloud and Data Center Switch
AIS800-64O-AFKód:

Edge-Core

Výrobce:
36 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:

Features:
  • OSFP800 or QSFP-DD800 switch ports, each supporting 1 x 800 GbE (100G PAM4), or via breakout cables 2 x 400G GbE, 4 x 200 GbE, or 8 x 100 GbE.
  • OSFP800 or QSFP-DD800 switch ports also support 1 x 400 GbE (50G PAM4), 1 x 100 GbE (NRZ), and via breakout cables 2 x 200 GbE, 4 x 100 GbE, or 8 x 50 GbE.
  • Up to 30 W power budget per QSFP800 and QSFP-DD800 port.
  • Incorporates Broadcom Tomahawk 5 switch series silicon.
    • Highest Radix: Up to 320 logical ports on a single chip, low latency
    • Cognitive/Adaptive routing and Dynamic Load Balancing (DLB) and Global Load Balancing (GLB)
    • Advanced shared buffering
    • Programmable in-band telemetry
    • Supports end-to-end congestion control
    • Power efficient due to a monolithic 5nm die
    • Hardware-based link failover for network resiliency and reduced job completion time
    • Support for SRv6
    • Support for VxLAN RIOT
  • BMC module with serial-over-LAN support
  • SyncE and PTPv2 support with 1PPS, 10MHz, and ToD connectors on the front panel
  • Contains e-fuses to protect transceivers and internal components
  • 2 RU form factor
  • Supports hot/cold aisles with front-to-back/AFO/port intake airflow SKU and back-to-front/AFI/port exhaust airflow SKU

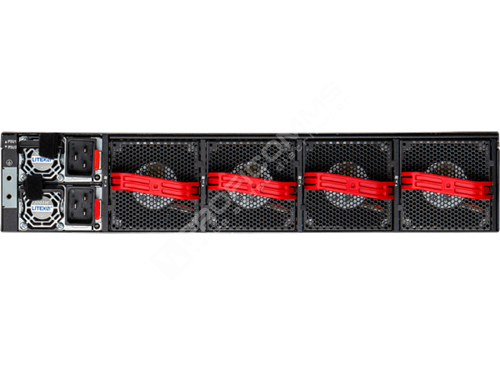

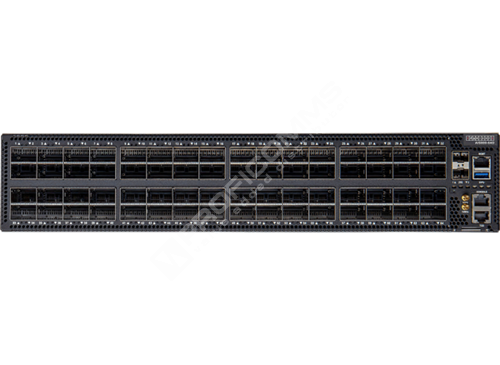

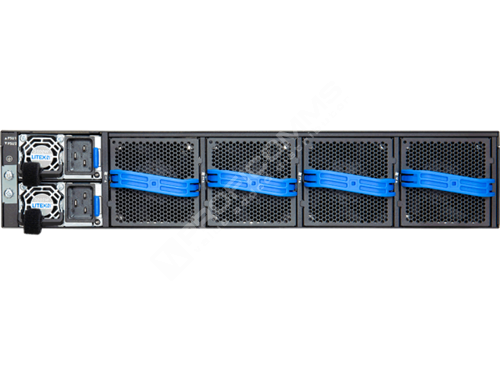

  • All ports on front; PSUs and fans accessible from rear
  • Hot-swappable, load-sharing, redundant 3000 W AC/DC PSUs
  • 4 Hot-swappable fan modules with 7+1 redundant fans
  • Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings

​

Parametry
0°C až +40°CProvozní teploty
ONIEManagement
Broadcom Tomahawk 5 (51.2Tbps)Typ chipsetu
200-240V AC, Modulární, RedundantníNapájení
Bez PoEPoE/port
Do 19" rozvaděčeMontáž
800 Gbps optikaHlavní porty (rychlost)
48 a vícePočet portů (celkem)
L2, L3Pracovní vrstva
z přední strany do zadní (port-to-power)Proudění vzduchu
