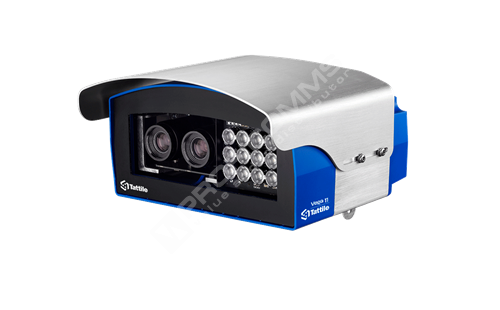

Tattile Vega 10: ANPR/ADR kamera s detekcí až do 180 km/h, 2Mpx ANPR kamera, bez kontextové kamery, IR přísvit, detekce až na 25m pro max. 1 pruh

ANPR/ADR camera, detection up to 180 km/h, 2Mpx ANPR camera, without context camera, IR illuminator, working distance up to 25m for max. 1 lane

Tattile Vega 10: ANPR/ADR kamera s detekcí až do 180 km/h, 2Mpx ANPR kamera, bez kontextové kamery, IR přísvit, detekce až na 25m pro max. 1 pruh
Novinka
Vega 10Kód:

Tattile/TKH

Výrobce:
24 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:

Doporučené využití pro kameru Vega 10: kontrola vjezdu, ochrana veřejné bezpečnosti, nízkoemisní zóna, parkování, mýtné - STOP & GO

STARK: Tato řada kamer Tattile je poháněna novým softwarem STARK, který nabízí nejnovější výkoný OCR neuronový algoritmus

Vega 10
Software features and performances
Lane Detected 1
Working Distance Up to 25m - 83 ft
Detection >99%
Reading Up to 98%
OCR ANPR (ALPR) engine on board
Third party OCR Optional
Classification No
Vehicle Color No
Vehicle Maker No
Vehicle Model No
Video Streaming No
AES256 Yes
SHA2 Yes
Image Compression JPG
CONFIGURATION
Web Server Installation and configuration with on board Web Application
Integration REST and binary protocol available
Date and Hour Synchronization via NTP protocol
Software Update Upgrading via Web Application and integration protocols
DATA TRANSMISSION
FTP FTP Client mode for remote data transmission
Standard protocols REST and binary protocol, XML, SNMP, NTCIP, Customizable message format
Configuration Configurable events/actions and metadata
Wiegand Optional
Serial Port Insulated RS485 / RS422
OPERATING MODE
Free Run Self triggering based on image analysis, even without plates
Trigger mode Image capture and processing triggered by Ethernet or digital signal
Technical features
SYSTEM
ANPR (ALPR) camera 2 Megapixels Grayscale
Context camera No
Illuminator 8 high power LEDs, InfraRed @ 850 nm
Lenses Fixed lens configuration
Operating System Linux Operating System
Custom software No
Digital I/O 2 Optoisolated input - 2 Relay Output – 1 Strobe output
IP Protection IP68
Ethernet GigaBit Ethernet 10/100/1000
Storage uSD up to 128 GB
Vandal proof Connector Yes
Antitamper sensor Yes
Internal SSD No
GPS No
LTE No
WiFi Optional
Technical Data
Operating & Storage Temperature From -40° to +60° C - From -40° to +140° F
Operating & Storage Humidity Up to 95% non-condensing
Dimensions 225 x 132 x 244 mm - 8.85 x 5.2 x 9.6 in (WxHxL)
Weight 3,6 kg - 8 lbs
Power supply voltage 24 Vdc, PoE+
Power consumption 25W
