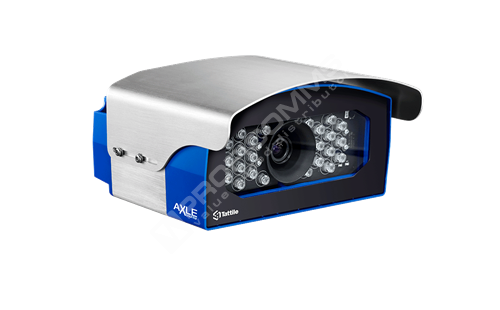

Tattile Axle Counter INT ILL: All-in-one senzor pro počítání náprav využívající deep learning s integrovaným IR přísvitem

All-in-one axle counting system based on deep learning (AI) with integrated infrared illuminator

Tattile Axle Counter INT ILL: All-in-one senzor pro počítání náprav využívající deep learning s integrovaným IR přísvitem
Novinka
Axle Counter INT ILLKód:

Tattile/TKH

Výrobce:
24 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:

Doporučené využití pro kameru Axle Counter INT ILL: počítání náprav

STARK: Tato řada kamer Tattile je poháněna novým softwarem STARK, který nabízí nejnovější výkoný OCR neuronový algoritmus

Axle Counter INT ILL
Software features and performances
Processed Lane 1
Installation Gantry
Installation height 7m (typical) - 23ft
Detection accuracy 99%
Managed vehicles Up to 2400 v/hour
Axles counting accuracy >95% over 4 classes (2,3,4,5+ axles)
Raised axles detection Yes
Twin wheels detection Yes
Speed estimation Yes
Processing Onboard processing
AES256 Yes
SHA2 Yes
Data buffering and storage Yes
Compression JPG
CONFIGURATION
Web Server Installation and configuration with on board Web Application
Integration REST and binary protocol available
Date and Hour Synchronization via NTP protocol or optional internal GPS
Software Update Upgrading via Web Application and integration protocols
DATA TRANSMISSION
FTP FTP Client mode for remote data transmission
Standard protocols REST and binary protocol
Configuration Actions and content customizable
Serial Port Insulated RS485
OPERATING MODE
Autotrigger Self triggering based on image analysis
Trigger Ethernet Image capture and processing triggered by Ethernet with start and stop message
Trigger Input Image capture and processing triggered with start and stop digital signal
Technical features
SYSTEM
Image capture sensor 2 Megapixels grayscale
Illuminator Infrared Internal Illuminator
Lenses Fixed lens configuration
Operating System Linux Operating System
Digital I/O 2 Inputs – 2 Outputs – 1 Strobe output
IP Protection IP68
Ethernet Gigabit Ethernet 10/100/1000
Storage uSD up to 128 GB
Vandal proof Connector Yes
Antitamper sensor Yes
Internal SSD Optional, up to 1TB
GPS Optional
WiFi Optional
Technical Data
Operating & Storage Temperature From -40° to +60° C - From -40° to +140° F
Operating & Storage Humidity Up to 95% non condensing
Dimensions 225x244x132mm
Weight 3,6kg
Power supply voltage 24 Vdc
Power consumption 29W
