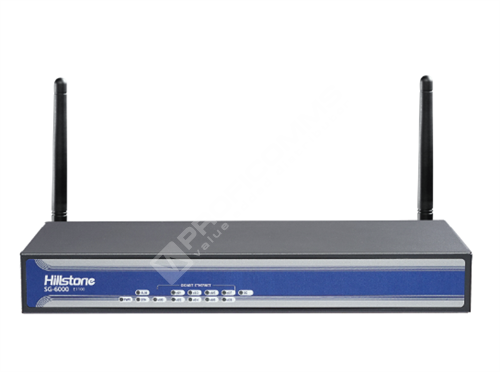

Hillstone SG6K-E1100WG3w-IN-12: Next Generation Firewall, propustnost 1 Gbps, WiFi, 1x AC zdroj

SG-6000-E1100WG3w Hardware and software platforms, including 1-year application identify database upgrade and software upgrade services, 1-year hardware warranty. Hardware information: desktop, 9 GE interface, built-in Wi-Fi and WCDMA modules, single

Hillstone SG6K-E1100WG3w-IN-12: Next Generation Firewall, propustnost 1 Gbps, WiFi, 1x AC zdroj
SG6K-E1100WG3w-IN-12Kód:

Hillstone

Výrobce:
12 měsícůZáruka:
Dostupnost po přihlášeníDostupnost:

Specifikace



  • Fixed I/O Ports: 9x GE
  • FW Throughput (Maximum): 1Gbps
  • IPSec Throughput: 600Mbps
  • AV Throughput: 300Mbps
  • IPS Throughput: 400Mbps
  • Management Ports: 1x Console Port, 1x USB Port
  • Wifi: IEEE802.11a/b/g/n
  • Maximum Power Consumption: 30W
  • 3G: WCDMA
  • Power Supply: AC 100-240V 50/60Hz
  • Dimensions: 320x150x44mm
  • Weight: 1,5kg
  • Temperature: 0-40°C
  • Relative Humidity: 10-95%



Popis:



Next Generation Firewally Hillstone řady E poskytují špičkovou ochranu v reálném čase pro aplikace a proti síťovým útokům. Poskytují ochranu proti virům, spywarům, červům, botnetům, ARP spoofingu, DoS / DDoS útokům, trojským koním atp.



Modelová řada E nabízí propustnost až 80 Gb/s.



U řady E lze volitelně přikoupit:

  • Balíček IPS, Antivir, QoS a URL filtering
  • AEL licence (Additional Enhanced License) – navýšení maximálního počtu současných spojení
  • VSYS licence (Virtual System License) – možnost rozdělení HW firewallu do více virtuálních firewallů
  • SSL VPN licence
  • Rozšiřující HW moduly
  • Rozšíření HW záruky a SLA služby
  • Centrální management HSM
  • Centrální dohled HSA (ukládání syslogů)



Vlastnosti



Network Services

  • Dynamic routing (OSPF, BGP, RIPv2)
  • Static and Policy routing
  • Route controlled by application
  • Built-in DHCP, NTP, DNS Server and DNS proxy
  • Tap mode – connect to SPAN port
  • IPv6 Support: Mgt. over IPv6, IPv6 routing protocols, IPv6 tunneling, IPv6 logging and HA
  • Interface modes: sniffer, port aggregated, loopback, VLANS (802.1Q and Trunking)
  • L2/L3 switching & routing
  • Virtual wire (Layer 1) transparent inline deployment



Firewall

  • ​​Operating modes: NAT/route, transparent (bridge), and mixed mode
  • Policy objects: predefined, custom, and object grouping
  • Application Level Gateways and session support: MSRCP, PPTP, RAS, RSH, SIP, FTP, TFTP, HTTP, dcerpc, dns-tcp, dns-udp, H.245 0, H.245 1, H.323
  • NAT support: NAT46, NAT64, NAT444, SNAT, DNAT, PAT, Full Cone NAT, STUN
  • NAT configuration: per policy and central NAT table
  • VoIP: SIP/H.323/SCCP NAT traversal, RTP pin holing
  • Global policy management view
  • Schedules: one-time and recurring
  • QoS Traffic Shaping:
    • Max/guaranteed bandwidth tunnels or IP/user basis
    • Tunnel allocation based on security domain, interface, address, user/user group, server/server group, application/app group, TOS, VLAN
    • Bandwidth allocated by time, priority, or equal bandwidth sharing
    • Type of Service (TOS) and Differentiated Services (DiffServ) support
    • Prioritized allocation of remaining bandwidth
    • Maximum concurrent connections per IP
  • Virtual Firewall: Up to 250 vSYS load balanced firewalls
  • Load balancing:
  •  Weighted hashing, weighted least-connection, and weighted round-robin
  • Session protection, session persistence and session status monitoring
  • Bidirectional link load balancing
  • Outbound link load balancing includes policy based routing, ECMP and weighted, embedded ISP routing and dynamic detection
  • Inbound link load balancing supports SmartDNS and dynamic detection
  • Automatic link switching based on bandwidth and latency
  • Link health inspection with ARP, PING, and DNS
  • Access control based on IP address geolocation
  • Repetitive and redundant firewall rule inspection
  • Security for file transmission based on name, size or type



VPN

  • IPSec VPN:
    • IPSEC Phase 1 mode: aggressive and main ID protection mode
    • Peer acceptance options: any ID, specific ID, ID in dialup user group
    • Supports IKEv1 and IKEv2 (RFC 4306)
    • Authentication method: certificate and pre-shared key
    • IKE mode configuration support (as server or client)
    • DHCP over IPSEC
    • Configurable IKE encryption key expiry, NAT traversal keep alive frequency
    • Phase 1/Phase 2 Proposal encryption: DES, 3DES, AES128, AES192, AES256 - Phase 1/Phase 2 Proposal authentication: MD5, SHA1, SHA256, SHA384, SHA512
    • Phase 1/Phase 2 Diffie-Hellman support: 1,2,5 - XAuth as server mode and for dialup users
    • Dead peer detection
    • Replay detection
    • Autokey keep-alive for Phase 2 SA
  • IPSEC VPN realm support: allows multiple custom SSL VPN logins associated with user groups (URL paths, design)
  • IPSEC VPN configuration options: route-based or policy based
  • IPSEC VPN deployment modes: gateway-to-gateway, full mesh, hub-and-spoke, redundant tunnel, VPN termination in transparent mode
  • One time login prevents concurrent logins with the same username
  • SSL portal concurrent users limiting
  • SSL VPN port forwarding module encrypts client data and sends the data to the application server
  • Supports clients that run iOS, Android, and Windows XP/Vista including 64-bit Windows OS
  • Host integrity checking and OS checking prior to SSL tunnel connections
  • MAC host check per portal
  • Cache cleaning option prior to ending SSL VPN session
  • L2TP client and server mode, L2TP over IPSEC, and GRE over IPSEC
  • View and manage IPSEC and SSL VPN connections



IPS

  • 7,000+ signatures, protocol anomaly detection, rate-based detection, custom signatures, manual, automatic push or pull signature updates, integrated threat encyclopedia
  • IPS Actions: default, monitor, block, reset (attackers IP or victim IP, incoming interface) with expiry time
  • Packet logging option
  • Filter Based Selection: severity, target, OS, application or protoco
  • IP exemption from specific IPS signatures
  • IDS sniffer mode
  • IPv4 and IPv6 rate based DoS protection with threshold settings against TCP Syn flood, TCP/UDP/SCTP port scan, ICMP sweep, TCP/UDP/SCIP/ICMP session flooding (source/destination)
  • Active bypass with bypass interfaces
  • Predefined prevention configuration



Threat Protection

  • Over 1.3 million AV signatures
  • Botnet server IP blocking with global IP reputation database
  • Flow-based Antivirus: protocols include HTTP, SMTP, POP3, IMAP, FTP/SFTP
  • Flow-based web filtering inspection
  • Manually defined web filtering based on URL, web content and MIME header
  • Dynamic web filtering with cloud-based real-time categorization database: over 140 million URLs with 64 categories (8 of which are security related)
  • Additional web filtering features: - Filter Java Applet, ActiveX or cookie - Block HTTP Post - Log search keywords - Exempt scanning encrypted connections on certain categories for privacy
  • Web filtering profile override: allows administrator to temporarily assign different profiles to user/group/IP
  • Web filter local categories and category rating override
  • Proxy avoidance prevention: proxy site category blocking, rate URLs by domain and IP address, block redirects from cache & translation sites, proxy avoidance application blocking, proxy behavior blocking (IPS)



Application Control

  •  Over 3,000 applications that can be filtered by name, category, subcategory, technology and risk
  • Each application contains a description, risk factors, dependencies, typical ports used, and URLs for additional reference
  • Actions: block, reset session, monitor, traffic shaping
  • Identify and control applications in the cloud
  • Provide multi-dimensional monitoring and statistics for applications running in the cloud, including risk category and characteristics



High Availability

  • High Availability
  • Redundant heartbeat interfaces
  • Active/Active and Active/Passive
  • Standalone session synchronization
  • HA reserved management interface
  • Failover:
    • Port, local & remote link monitoring
    • Stateful failover
    • Sub-second failover
    • Failure notification
  • Deployment Options:
  • HA with link aggregation
  • Full mesh HA
  • Geographically dispersed HA



Administration

  • Administration
  • Management access: HTTP/HTTPS, SSH, telnet, console
  • Central Management: Hillstone Security Manager (HSM), web service APIs
  • System Integration: SNMP, syslog, alliance partnerships
  • Rapid deployment: USB auto-install, local and remote script execution
  • Dynamic real-time dashboard status and drill-in monitoring widgets
  • Language support: English



Logs & Reporting

  • Logging facilities: local memory and storage (if available), multiple syslog servers and multiple Hillstone Security Audit (HSA) platforms
  • Encrypted logging and log integrity with HSA scheduled batch log uploading
  • Reliable logging using TCP option (RFC 3195)
  • Detailed traffic logs: forwarded, violated sessions, local traffic, invalid packets
  • Comprehensive event logs: system and administrative activity audits, routing & networking, VPN, user authentications, WiFi related events
  • IP and service port name resolution option
  • Brief traffic log format option



SSL Decryption

  • Inspect SSL encryption traffic
  • Supports IPS enablement for SSL encrypted traffic
  • Supports AV enablement for SSL encrypted traffic
  • Support URL filter for https encrypted traffic





Parametry
1 Gbps, 1Gbps GbpsFW Propustnost
600MbpsIPSec Propustnost
300MbpsAntivir Propustnost
400MbpsIPS Propustnost
200KMaximum Concurrent Sessions (Standard/Max.)
512IPSec Tunnel Number
10,000New Sessions/s
128Maximum SSL VPN Users
9Fixní I/O porty
